Description:

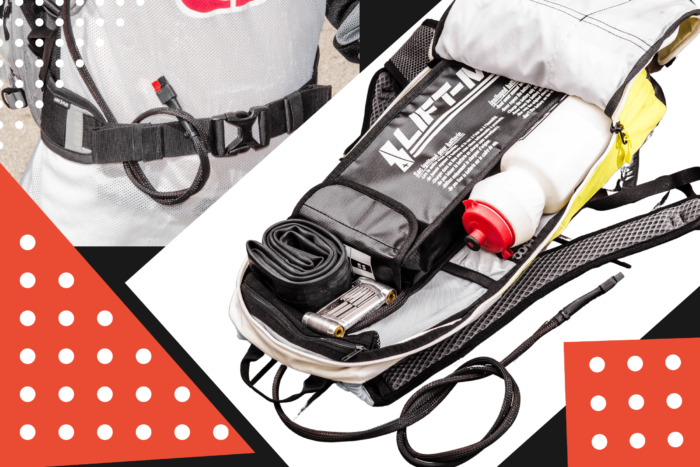

  • The battery for flat electric bike 14 Ah / 500Wh is a special model for backpack thanks to its flat shape it allows a perfect comfort in position bag and a good autonomy.
  • It is an all-purpose model that will accompany you on average for outings of 1400 meters of positive elevation gain and about 50km (see table).

The 14 Ah / 500 Wh is a best-seller, allowing a good autonomy and a good comfort of use.

550,00

ASSEMBLY IN FRANCE
SECURE PAYMENT
By credit card, check or bank transfer
2 YEARS WARRANTY
By our after-sales service
SATISFIED OR REPLACED

DELIVERY – By relay point or at home in most countries of the world.

Features:

Dimensions of the 500 Wh electric battery: 30.5cm x 14cm x 4.5cm

Panasonic or LG 36 V Li-ion cells

Weight of the 500 Wh electric battery: +/- 2,7 kg

Sold with fireproof bag + extension cable (1,40 m) + charger

All our batteries are assembled in France.


The 36 volt Li-ion batteries we offer are all compatible with the LIFT-MTB kit.

Simply define the capacity you need based on the types of current output you do.

Main specifications:

Voltage: 36 Volt / Li-ion

Available capacities: 8.7Ah (300 Wh) / 11.5Ah (400 Wh) / 14Ah (500 Wh) available in flat or square or 17Ah (600 Wh)

Dimensions / Weight : From 1.6 kg to 3.2 kg. see table

Charger (included in the price): 2 Ampere charge intensity, 220 Volts power supply, euro plug.

Service life: 800 cycles (16,000 km to 55,000 km depending on capacity)

Estimated minimum autonomy: 20 to 70km and 500 to 1750 of D+ (see table.)

– The batteries are not waterproof!

-Fireproof transport bag to protect the battery and secure the charge.

– Other: Sold with 1.35 meter power cable to connect to the motor. (included in the price)

All our batteries are systematically checked on the test bench.

If a battery is not available, the manufacturing time is about 1 week, for more info contact us.



– Technology:

High discharge capacity with LG or PANASONIC cells, equipped with a BMS (Battery Management System) that regulates the discharge and charge to preserve its life.

Minimum voltage allowed by the BMS: 27,5 V / Maximum voltage allowed by the BMS: 42 v

Ideal charging temperature: 0°C to 42°C / Ideal discharge temperature: – 5°C to 42°C / Ideal storage temperature: 10°C to 30°C

Allowable continuous discharge current: 30 Amps / Allowable peak discharge current: 60 Amps


Find in the FAQ section of our website the articles related to the product:

How to choose your electric bike battery?



The different models of batteries :
